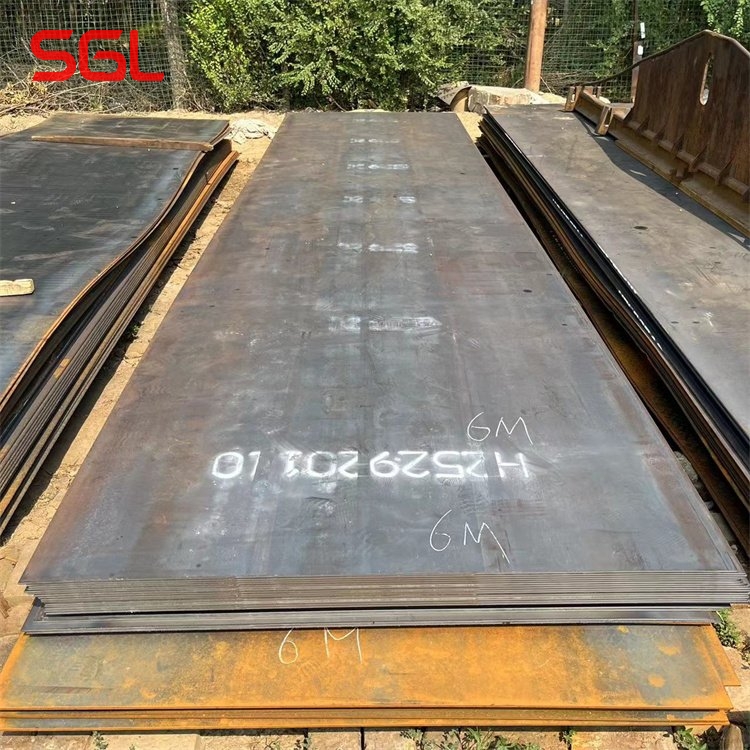

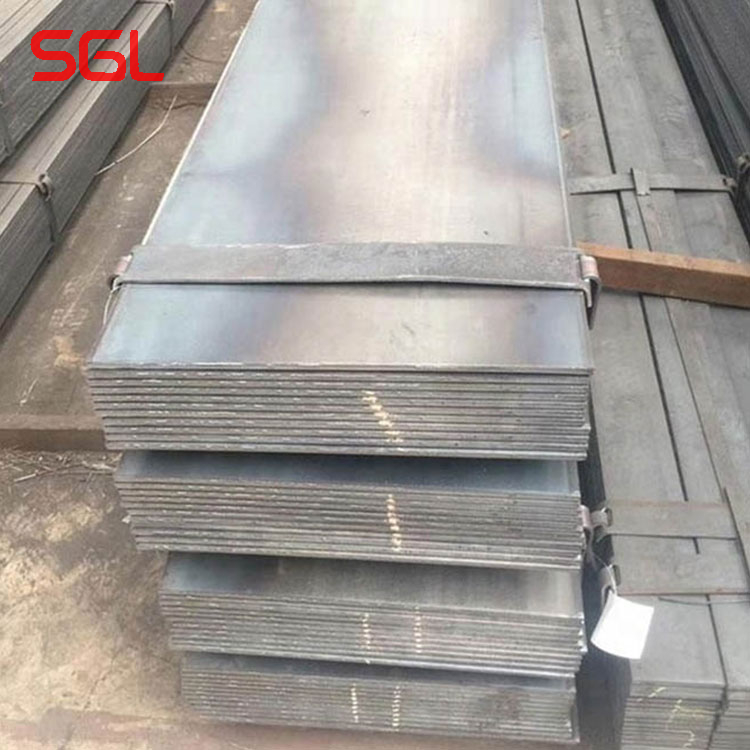

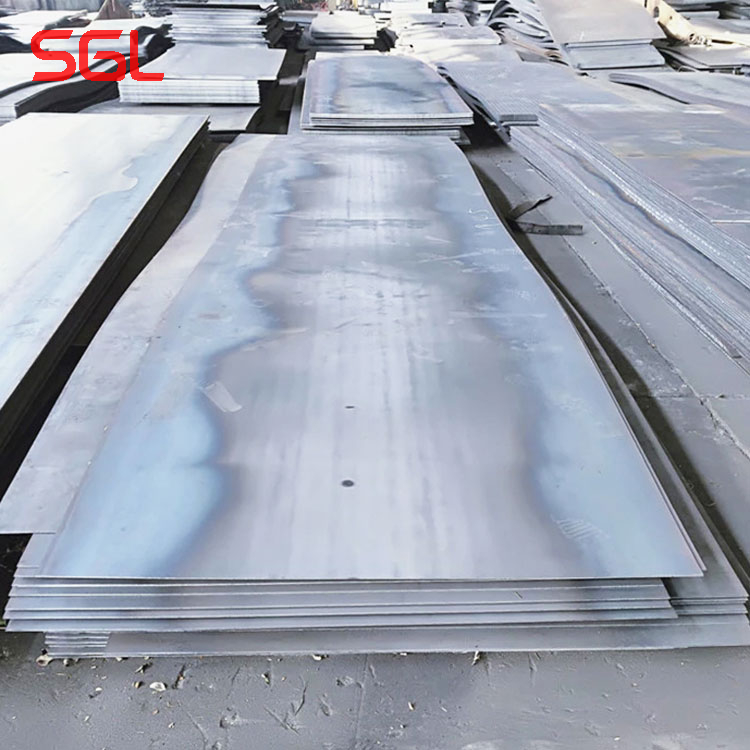

A36 s235jr Carbon Steel Plate Sheet
Carbon steel, also called carbon steel, is an iron-carbon alloy with a carbon content ωc less than 2%. Generally, the higher the carbon content in carbon steel, the higher the hardness and the higher the strength, but the lower the plasticity. In addition to carbon, carbon steel generally contains a small amount of silicon, manganese, sulfur, and phosphorus.
Email : info@sglsteel.com
Whatsapp : +86 13589078967
Contact Us
Product Description

How many types of carbon steel plates can be divided into?

Carbon steel, also called carbon steel, is an iron-carbon alloy with a carbon content ωc less than 2%. Generally, the higher the carbon content in carbon steel, the higher the hardness and the higher the strength, but the lower the plasticity. In addition to carbon, carbon steel generally contains a small amount of silicon, manganese, sulfur, and phosphorus.

(1) According to the purpose, carbon steel can be divided into three types: carbon structural steel, carbon tool steel and free-cutting structural steel, and carbon structural steel is divided into engineering construction steel and machine manufacturing structural steel;

(2) According to the smelting method, it can be divided into open-hearth steel and converter steel;

(3) According to the deoxidation method, it can be divided into boiling steel (F), killed steel (Z), semi-killed steel (b) and special killed steel (TZ);

(4) According to the carbon content, carbon steel can be divided into low carbon steel (ωc≤0.25%), medium carbon steel (ωc=0.25%-0.6%) and high carbon steel (ωc>0.6%);

(5) According to the quality of steel, carbon steel can be divided into ordinary carbon steel (higher phosphorus and sulfur content), high-quality carbon steel (lower phosphorus and sulfur content) and advanced high-quality steel (lower phosphorus and sulfur content) ) and super high-quality steel.


Carbon steel classification:

1. According to the mass percentage of carbon: low carbon steel (C:≤0.25%); medium carbon steel (C:0.25≤C≤0.6%); high carbon steel (C:>0.6%)

2. According to the quality of steel (mainly the content of impurities sulfur and phosphorus):

Ordinary carbon steel (S≤0.055%, P≤0.045%)

High-quality carbon steel (S≤0.040%, P≤0.040%)

High quality carbon steel (S≤0.030%, P≤0.035%)

3. By use:

Carbon structural steel: mainly used for bridges, ships, building components, machine parts, etc.;

Carbon tool steel: mainly used for tools, molds, measuring tools, etc.;

Types of steel and their grades:

Ordinary carbon structural steel

Q195, Q215, Q235

Good plasticity, can be rolled into steel plates, steel bars, steel pipes, etc.

Q225, Q275

Can be rolled into shaped steel, steel plate, etc.

High quality carbon structural steel

20#, 45#, etc.

Mainly used to manufacture various machine parts

Carbon Tool Steel

T9, T12 etc.

Mainly used to manufacture various props, measuring tools, molds, etc.

cast steel

ZG25 etc.

It is mainly used to manufacture parts with complex shapes and require certain strength, plasticity and toughness, such as gears, couplings, etc.



Grade

Level

Chemical composition,%

Deoxygenation method

C

Mn

Si

S

P

No greater than

Q195

-

0.06~0.12

0.25~0.50

0.30

0.050

0.045

F、b、Z

Q215

A

0.09~0.15

0.25~0.55

0.30

0.050

0.045

F、b、Z

B

0.045

Q235

A

0.14~0. 22

0.30~0.65

0.30

0.050

0.045

F、b、Z

B

0.12~0.20

0.30~0.70

0.045

C

≤ 0.18

0.35~0.80

0.040

0.040

Z

D

≤ 0.17

0.035

0.035

TZ

Q255

A

0.18~0.28

0.40~0.70

0.30

0.050

0.045

F、b、Z

B

0.045

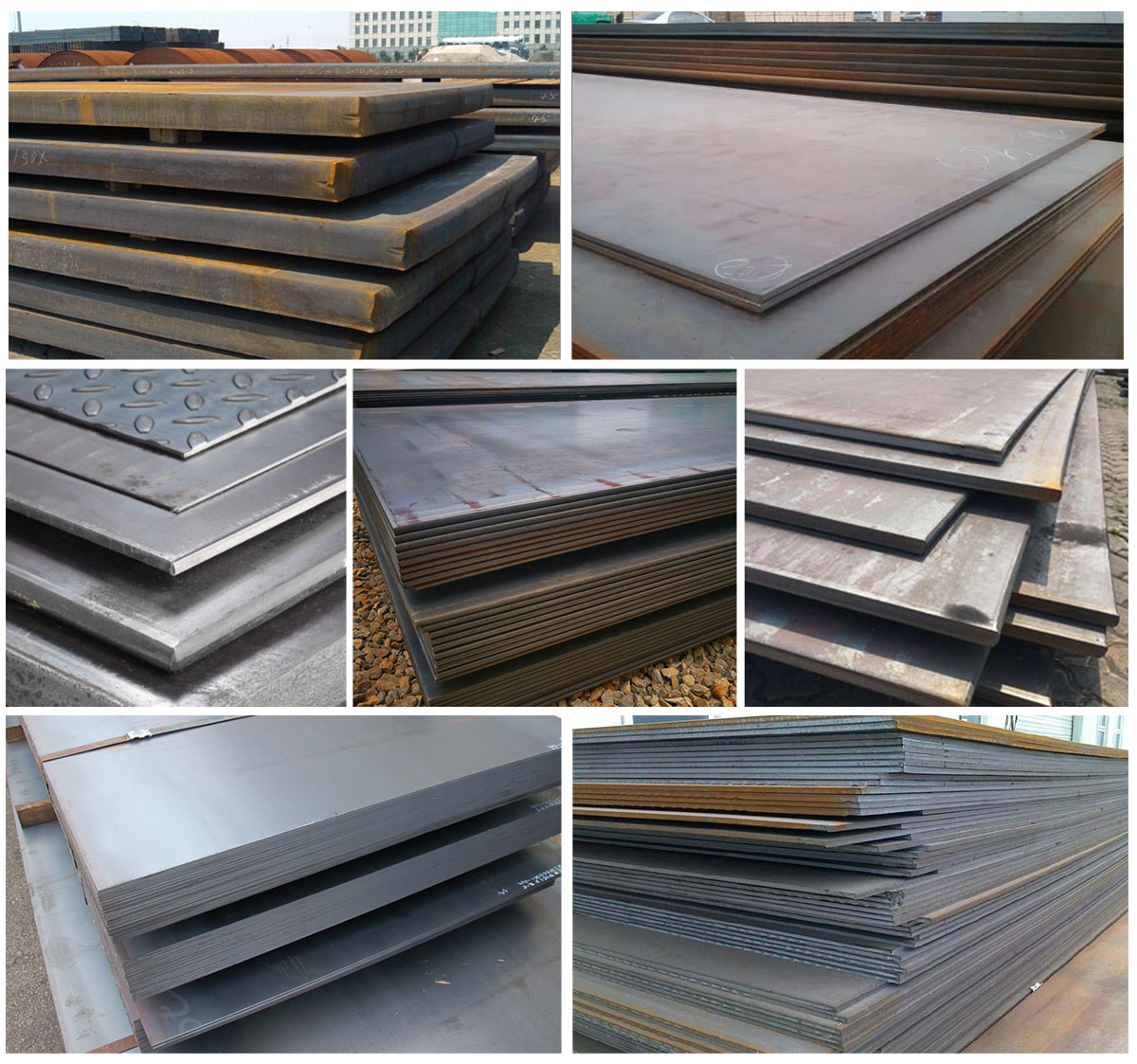

Product Show
