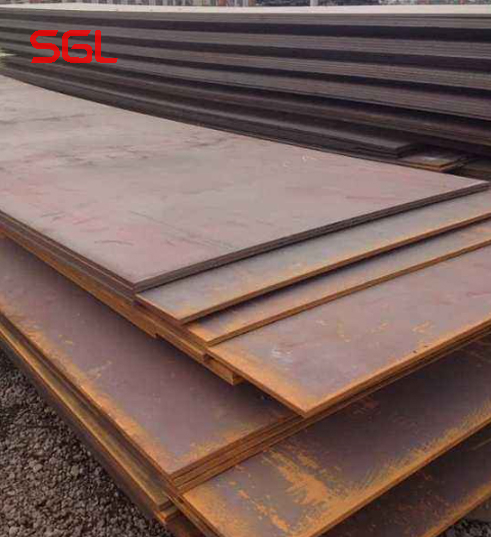

Q215 Wear-resistant Steel Plate
Wear-resistant steel plate has high wear resistance and good impact performance. It can be cut, bent, welded, etc., and can be connected to other structures by welding, plug welding, bolt connection, etc., which saves time in the process of repairing the site, convenient and other characteristics, widely used in metallurgy, coal, cement, electric power, glass, mining, building materials, bricks and other industries, compared with other materials, has a high cost performance.
Email : info@sglsteel.com
Whatsapp : +86 13589078967
Contact Us
Product Description

Wear-resistant steel plate has high wear resistance and good impact performance. It can be cut, bent, welded, etc., and can be connected to other structures by welding, plug welding, bolt connection, etc., which saves time in the process of repairing the site. convenient and other characteristics, widely used in metallurgy, coal, cement, electric power, glass, mining, building materials, bricks and other industries, compared with other materials, has a high cost performance.


Product Name

Wear resistant steel plate/ sheet

Grade

NM360, NM400, NM450, NM500, NM550, NM600,NM700

Hardfacing layer

High chromium high carbide overlay

Chemical Composition

C(%): 3.0-5.0, Cr(%): 25-40

Microstructure

The carbide (Cr7C3) volume fraction on the microstructure is above 50%

Hardness

HRC

Surface Treatment

Hardfacing,clading,coated

Technique

Hardfacing,open arc welding,submerged arc welding

Wear Resistance

High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel

Impact Resistance

Medium

Thickness tolerance

Uniform overlay thickness, with tolerance within 0-0.5mm.

Main Thicknesses

3+3,4+4, 5+56+4,6+5,6+6,6+88+4,8+5,8+6,8+7,8+810+4,10+5,10+6,10+7,10+8,10+9,10+10,10+2012+4,12+5,12+6

,12+7,12+8,12+10,12+11,12+1214+6,14+8,14+10,16+6,16+8,16+1018+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10Customized.

Plate Size

Open arc welding wear plate:1400*3400mm Submerged arc welding wear plate:1400*3000mm, 1400*3500mm, 2100*3500mm.Customized.

Product Show

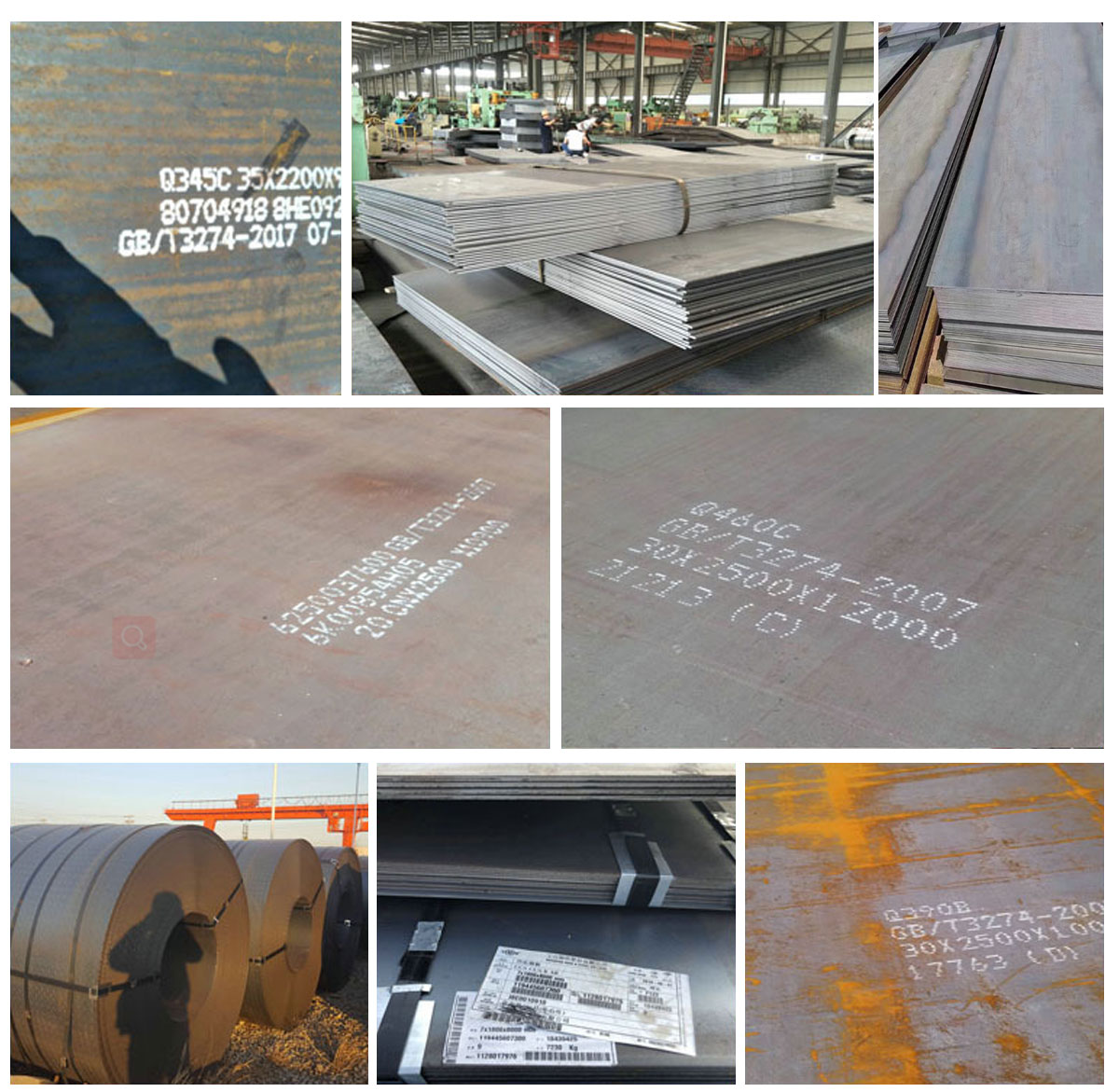

carbon steel plate (4).jpg
